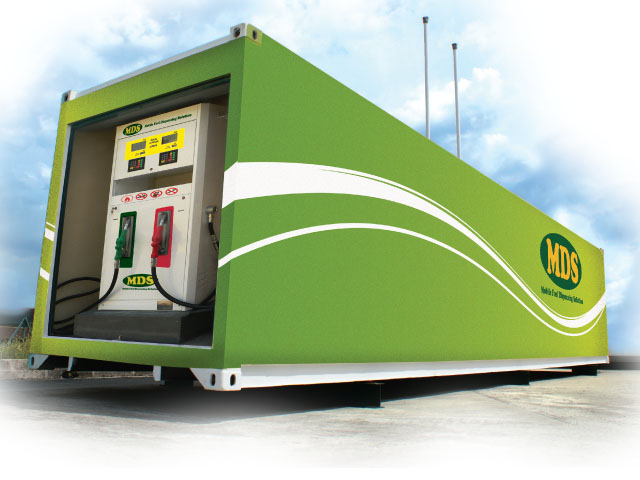

Basic Configurations
Container Dimensions 12.19m Length x  2.44m Width x 2.59m Height
Tank Capacity Two Products, 12,750 Liters Per Product
Tank Material Steel Plate To ASTM36, 6mm Wall, 10mm End Plates
Manhole & Doors Manhole/Doors/Roller Shutters - Lockable For Security
Dispensers Two Dispensers, 40 L/min, 4 Nozzles, Accuracy +/- 0.3%
Dispenser Display Backlit LCD With Battery Backup,  Amount - 8, Volume -8, Unit - 5 Digits
Nozzle Type Automatic Nozzle, Available For Unleaded Or Diesel
Pump Unit 1.5HP Submerged Turbine Pump
Power Supply AC 220V, 50 Hz With Earthing Connection
Electrical Components Lights/Switches/Fans - Explosion Proof and IP Rated
Emergency Stop Push Button At Dispensing Booth To Disconnect Electrical For Entire Unit
Insulation Internal Wall Lining With 50mm Rockwool & 10mm Cement Board
Interior Ventilation Louvered Doors and Fan Forced Ventilation
Tank Filling Fuel Filling and Emptying System Between Tank Truck and Product Tank
Spill Containments Fuel Spill Containments for Tank, Manhole, Dispenser
Surface Protection Interior/Exterior Painted With Marine Anti Rust Paint
Company Branding Company Logo On Side Flat Claddings
Tank Gauging Graphical Display Monitoring System For Oil and Water Levels In Tank
Overfill Prevention Prevent Overfilling Of Storage Tank By Providing Positive Shut-off
Generator Portable 220/380v 3 Ph, 50 Hz, 5KW Power Diesel Generator
Cash Deposit Safe  Securely Mounted Front Loading Drop Cash System With Anti-Fishing Baffle
Air Conditioner  Explosion Proof Wall Mounted Air Conditioning For The Office /Store Room

Download Brochure PDF - English
